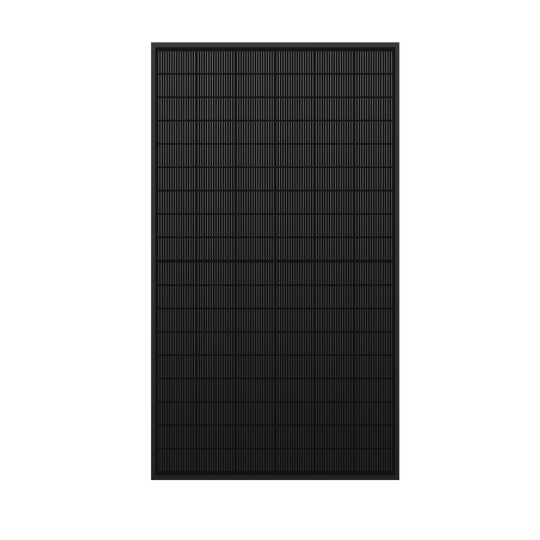

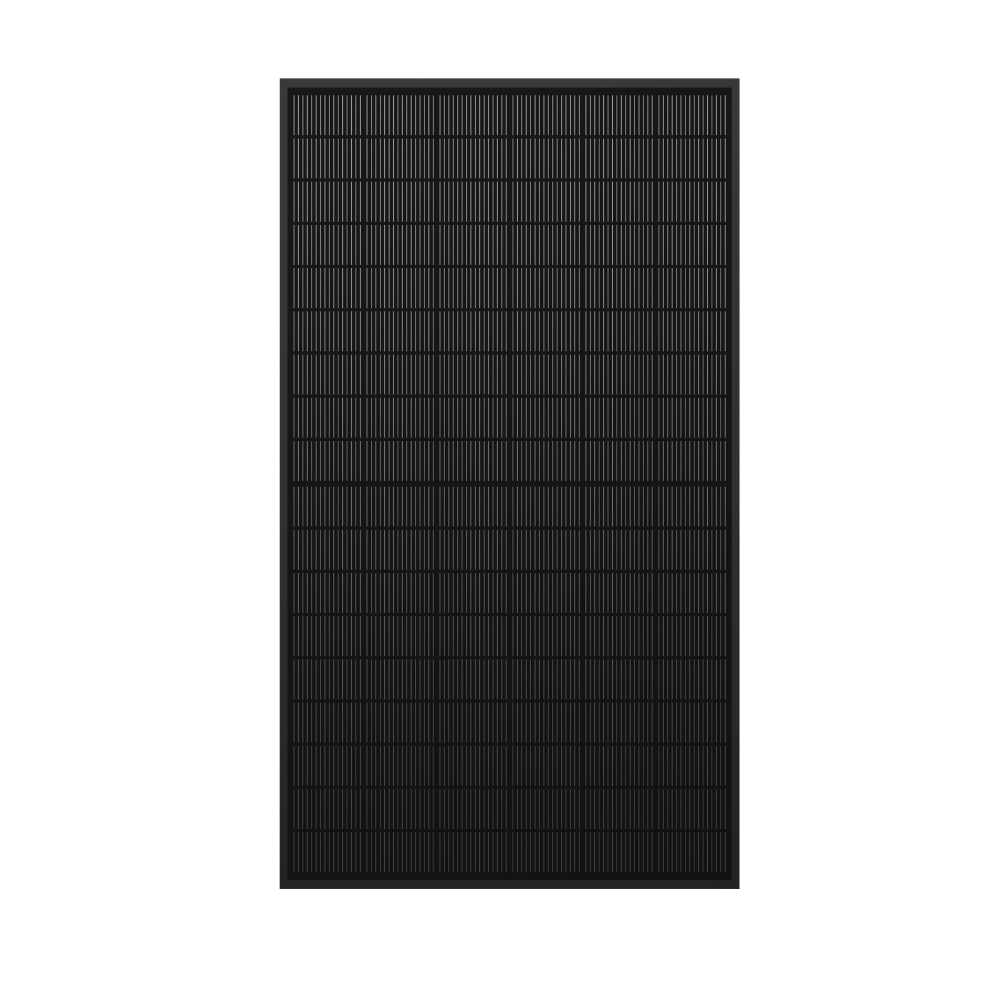

430W bifaciaal zonnepaneel - Voorzijde met glasoppervlak voor lichtabsorptie

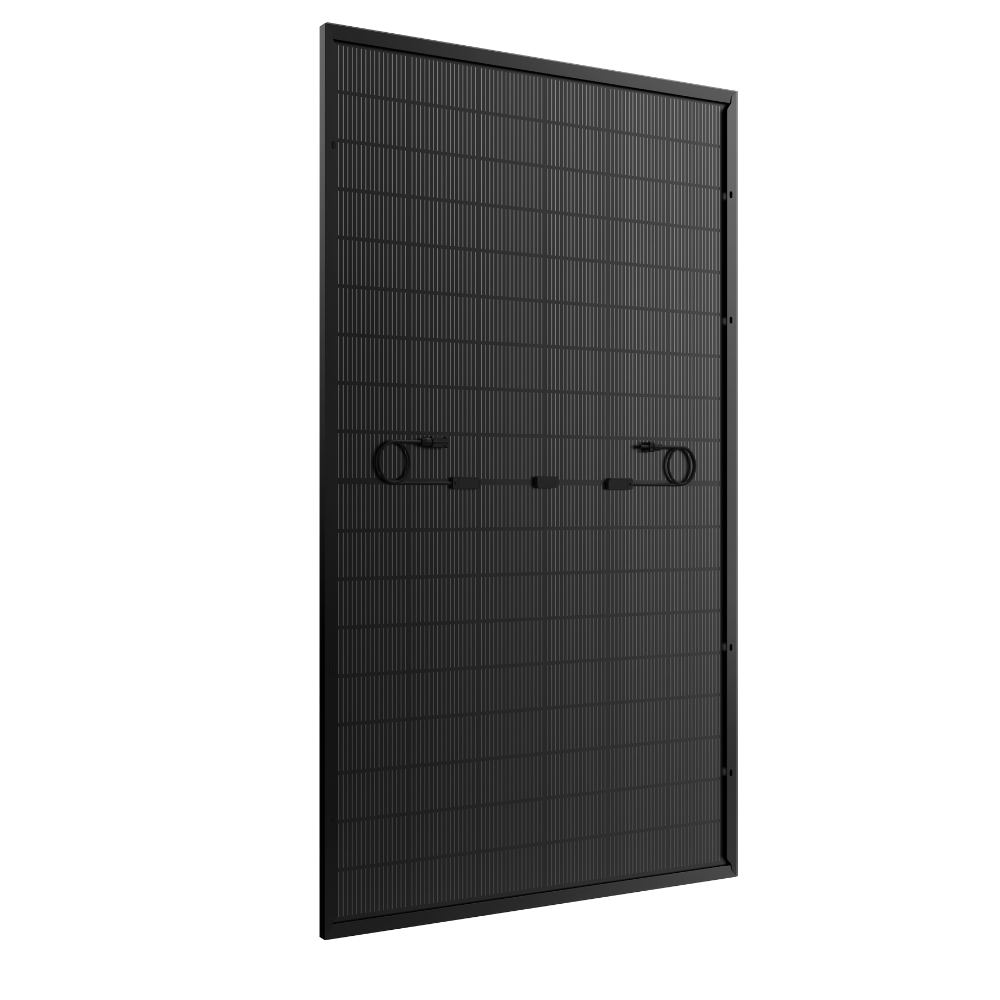

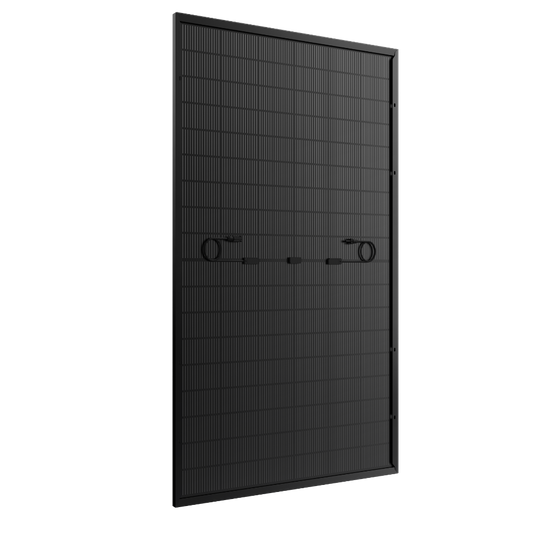

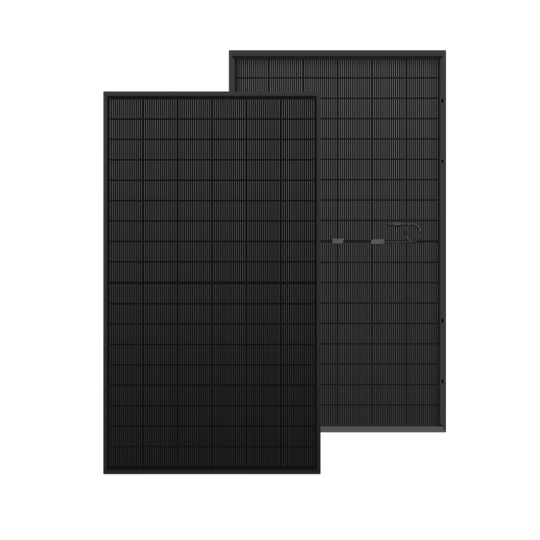

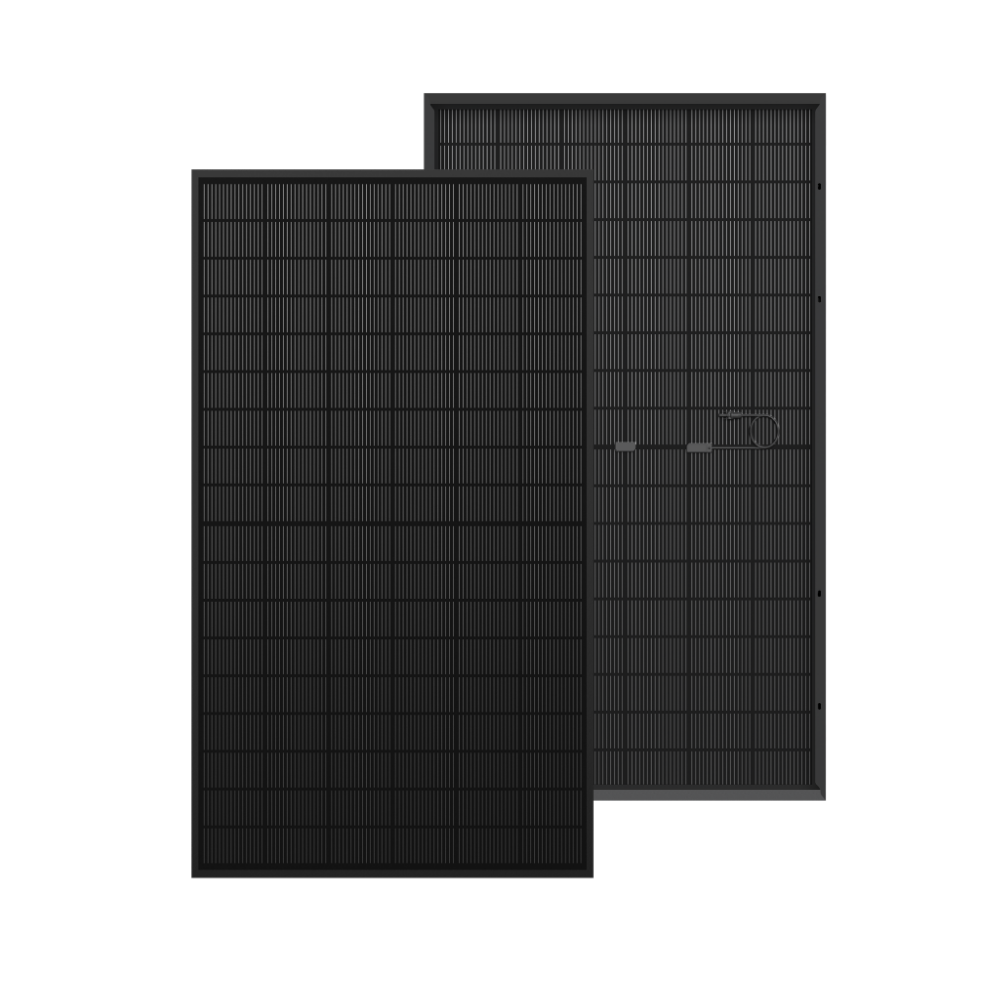

430W bifaciaal zonnepaneel - Achterkant

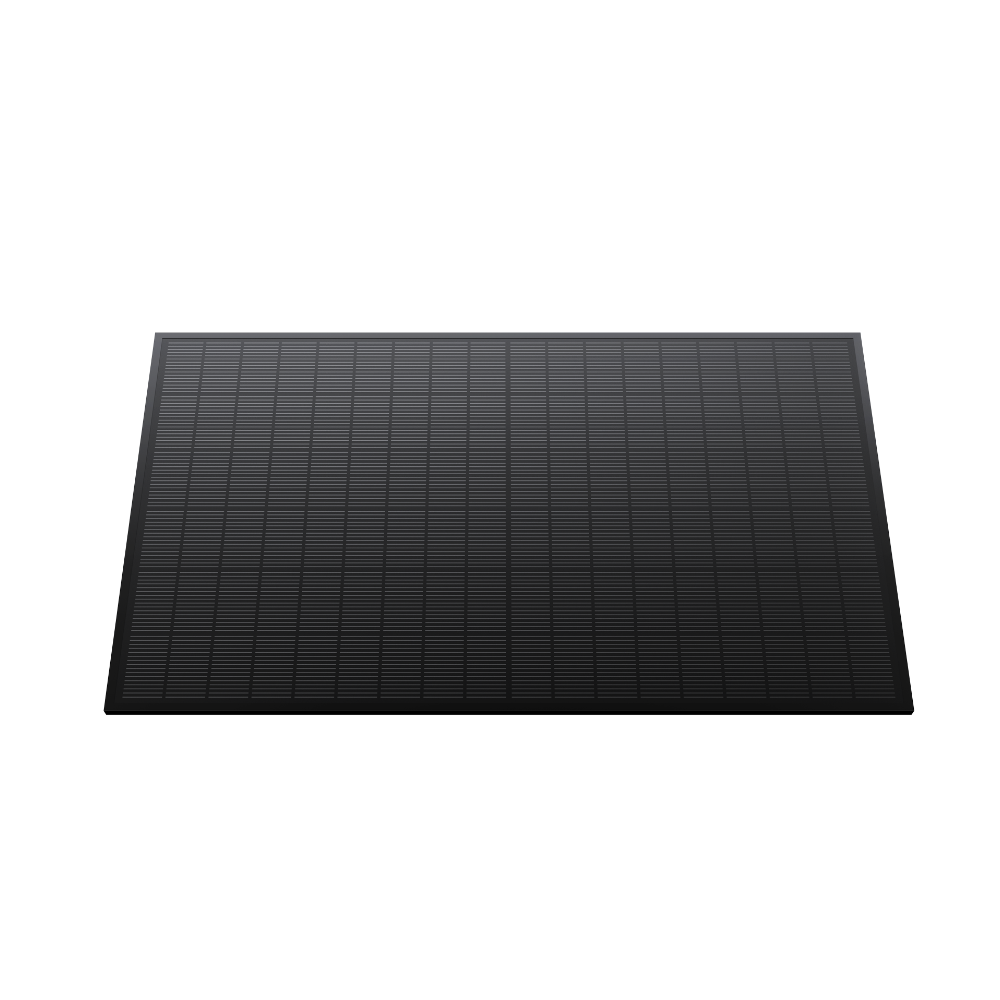

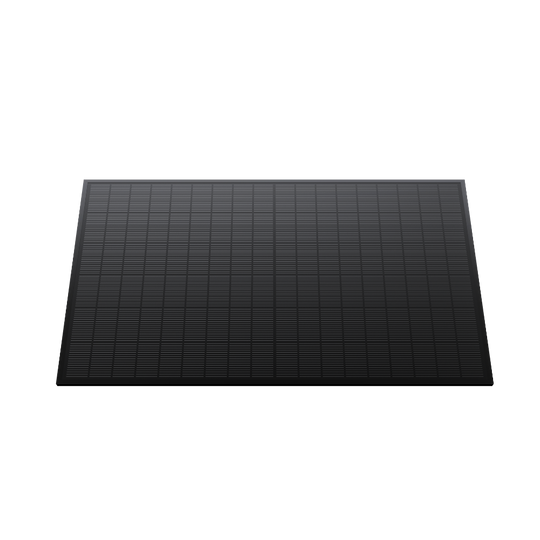

430W bifaciaal zonnepaneel - Op de grond schuin geplaatst
430W bifaciaal zonnepaneel - Voorzijde met glasoppervlak voor lichtabsorptie

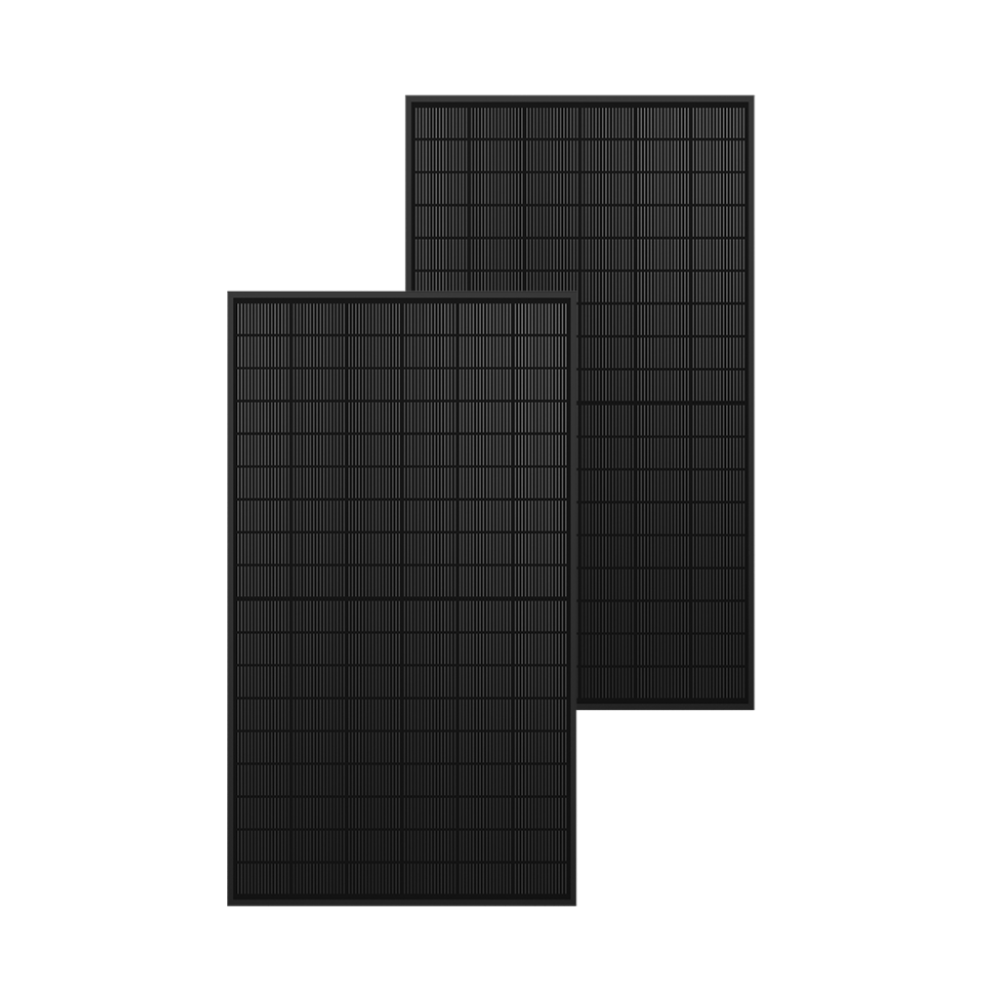

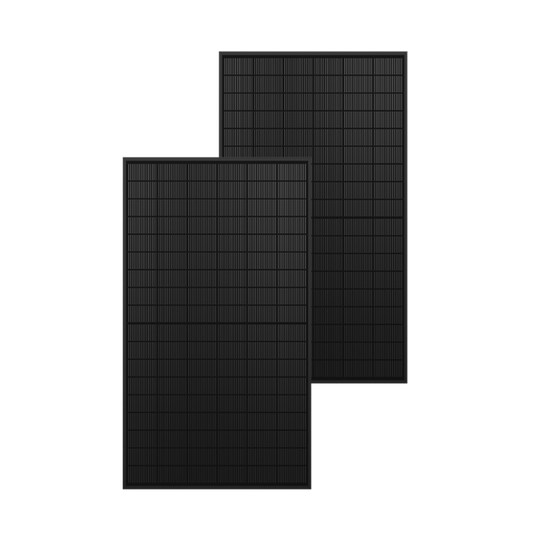

2*430W bifaciaal zonnepaneel - Voorzijde met glasoppervlak voor lichtabsorptie

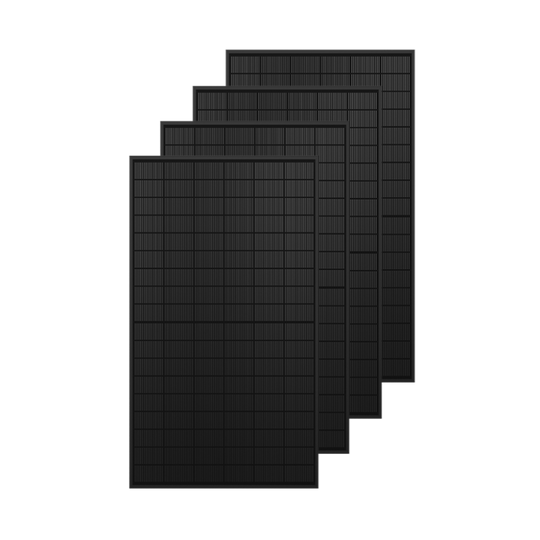

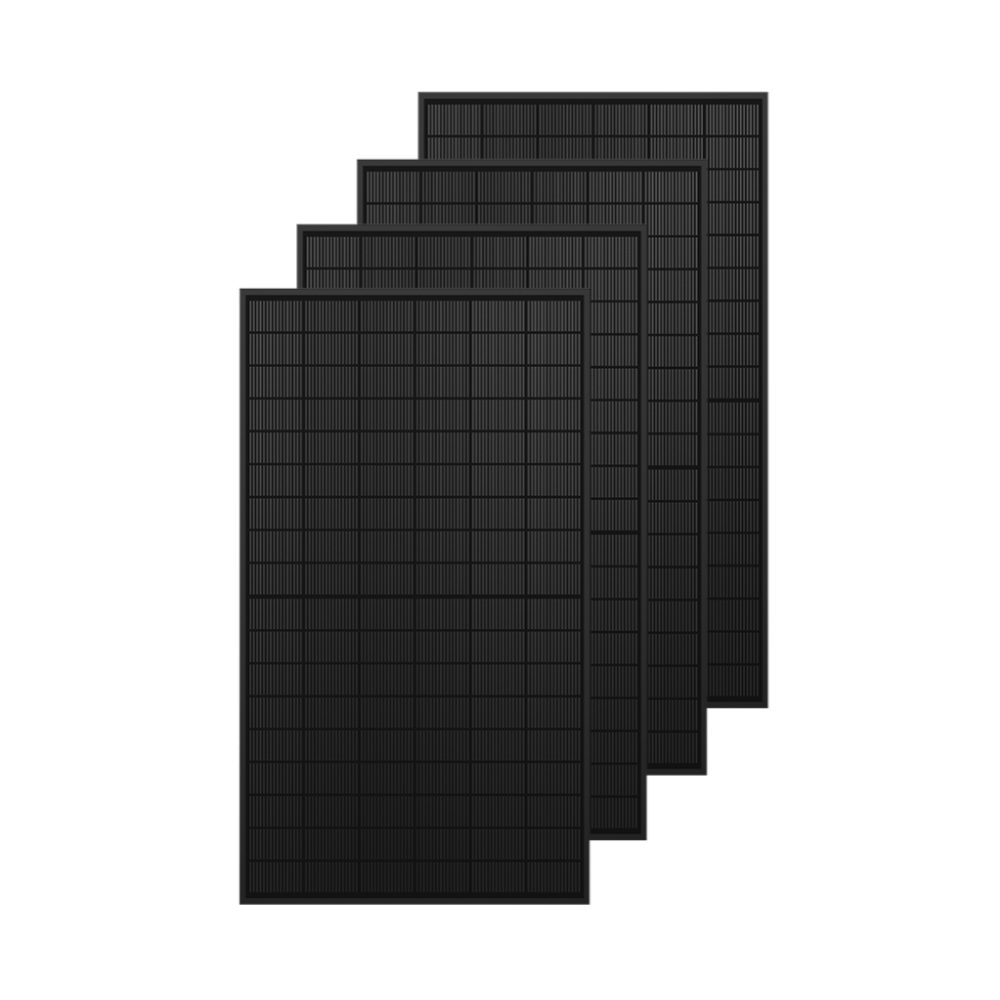

4*430W bifaciaal zonnepaneel - Voorzijde met glasoppervlak voor lichtabsorptie
430W bifaciaal zonnepaneel - Voorzijde met glasoppervlak voor lichtabsorptie
430W bifaciaal zonnepaneel - Achterkant
430W bifaciaal zonnepaneel - Op de grond schuin geplaatst
430W bifaciaal zonnepaneel - Voorzijde met glasoppervlak voor lichtabsorptie
2*430W bifaciaal zonnepaneel - Voorzijde met glasoppervlak voor lichtabsorptie
4*430W bifaciaal zonnepaneel - Voorzijde met glasoppervlak voor lichtabsorptie

450W Bifacial Solar Panel

€399,00 Excl. Bebat-bijdrage
€399,00 -€-399
/
Tax included. Shipping calculated at checkout.
The listed prices and taxes apply to private individuals only.
For business purchases, please contact us.
Choose your set

Samen kopen – verrassend voordelig!

2*450W base, 1170W maximum due to additional rear advantages

We present the advanced 450W bifacial solar panel module, designed to maximize performance and reliability. With its light-reversal film technology, this module enhances efficiency and bifacial output. The non-destructive cutting ensures a gentle and precise cell separation, preserving the cell structure for effective current flow. High-precision laser soldering for the junction box guarantees robust construction and increases safety for a reliable solar energy solution.
*Please note that installation parts are not included. Purchase them separately if needed.

Key Features

  • Higher Power Output: The module's power typically increases by 5 to 25%, significantly reducing the total cost of ownership and increasing profitability.
    Positive output guarantee within a tolerance of 0-5W.
  • ZERO LID: The N-type cell is characterized by a "0" LID, which produces more energy.
  • PID Resistance: Excellent PID resistance performance guaranteed by an optimized mass production process and material control.
  • Durability under extreme conditions: High resistance to salt spray and ammonia, certified by TUV NORD.
    Lower temperature coefficients and operating temperature.
  • Extraordinary performance in low light: Higher output even in low-light environments, such as during cloudy days.
  • Improved mechanical load tolerance: Certified for wind load (2400 Pa) and snow load (5400 Pa).
  • Full EL inspection: Full two-step EL inspection.

Specifications

Bifacial Solar Panel Module 430W

Model RM-450W-182M/108TB
Mechanical Characteristics
Cell Type N-Type
Module Dimensions 1762×1134×30mm
Glass Thickness 1.6mm + 1.6mm
Weight 25.5 kg
Junction Box IP68
Output Cable 4mm², 1200 mm
Connector Type MC4 compatible
Frame Anodized Aluminum Alloy
Electrical Characteristics
Module Efficiency (%) STC : 22.52 %
Maximum Power (Pmax) STC : 450 W
NMOT : 326 W
Operating Voltage (Vmp) STC : 34.09 V
NMOT : 30.77 V
Operating Current (Imp) STC : 14.97 A
NMOT : 10.61 A
Open Circuit Voltage (Voc) STC : 39.86 V
NMOT : 36.96 V
Short Circuit Current (Isc) STC : 13.38 A
NMOT : 11.12 A
*STC : Irradiance 1000 W/m², AM=1.5.
Module temperature 25°C, Pmax tolerance within +/- 3%.
The test scenario is based on the front side.
*NMOT : Irradiance 800 W/m², AM=1.5.
Ambient temperature 20°C, wind speed 1 m/s
The test scenario is based on the front side.
Temperature Characteristics
NMOT 42±2°C
Temperature Coefficient of Pmax -0.300 %/°C
Temperature Coefficient of Voc -0.250 %/°C
Temperature Coefficient of Isc +0.045 %/°C
Operating Parameters
Maximum System Voltage Rating DC1500V
Performance Tolerance 0~+5W
Operating Temperature Range -40 to +85 ℃
Rated Maximum Series Fuse 30A
Static Load Front side 5400Pa, rear side 2400Pa
