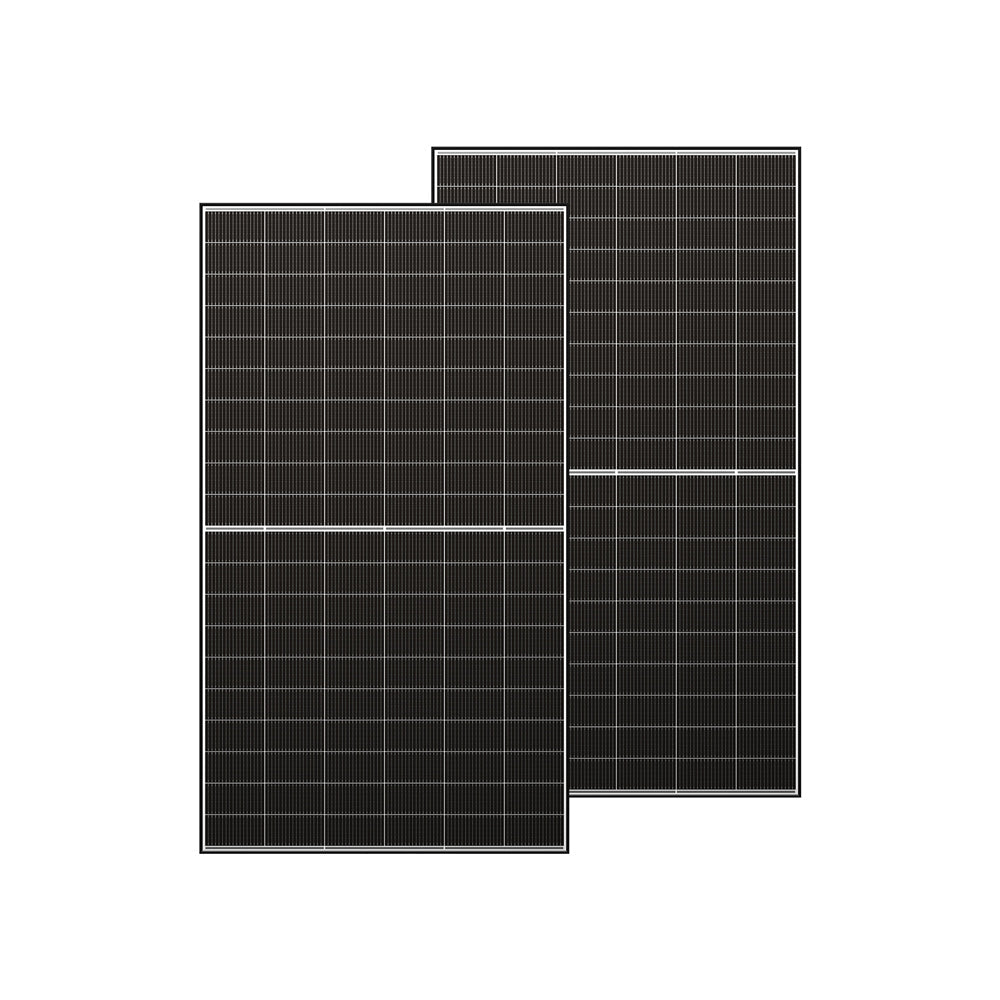

2*500W bifaciaal zonnepaneel - Voorzijde met glasoppervlak voor lichtabsorptie

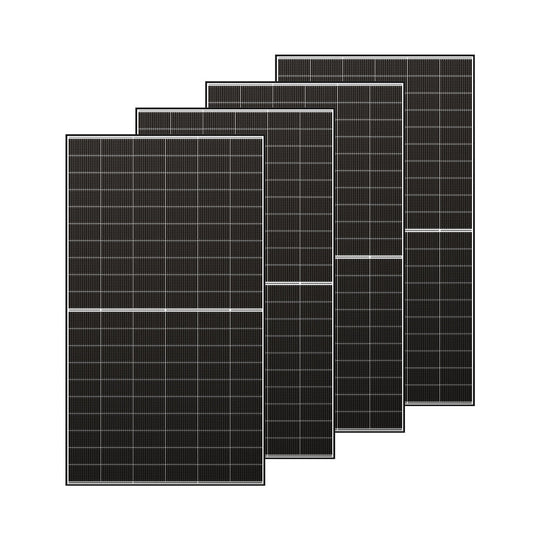

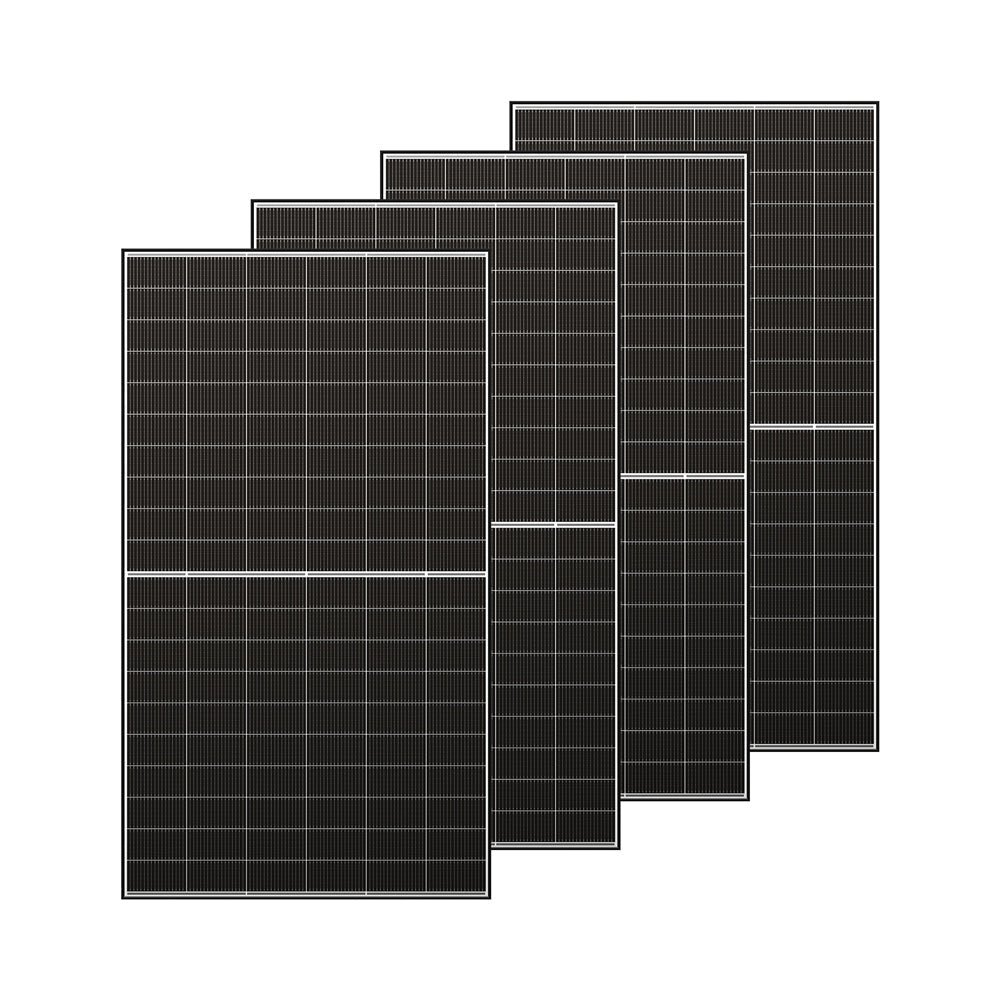

4*500W bifaciaal zonnepaneel - Voorzijde met glasoppervlak voor lichtabsorptie

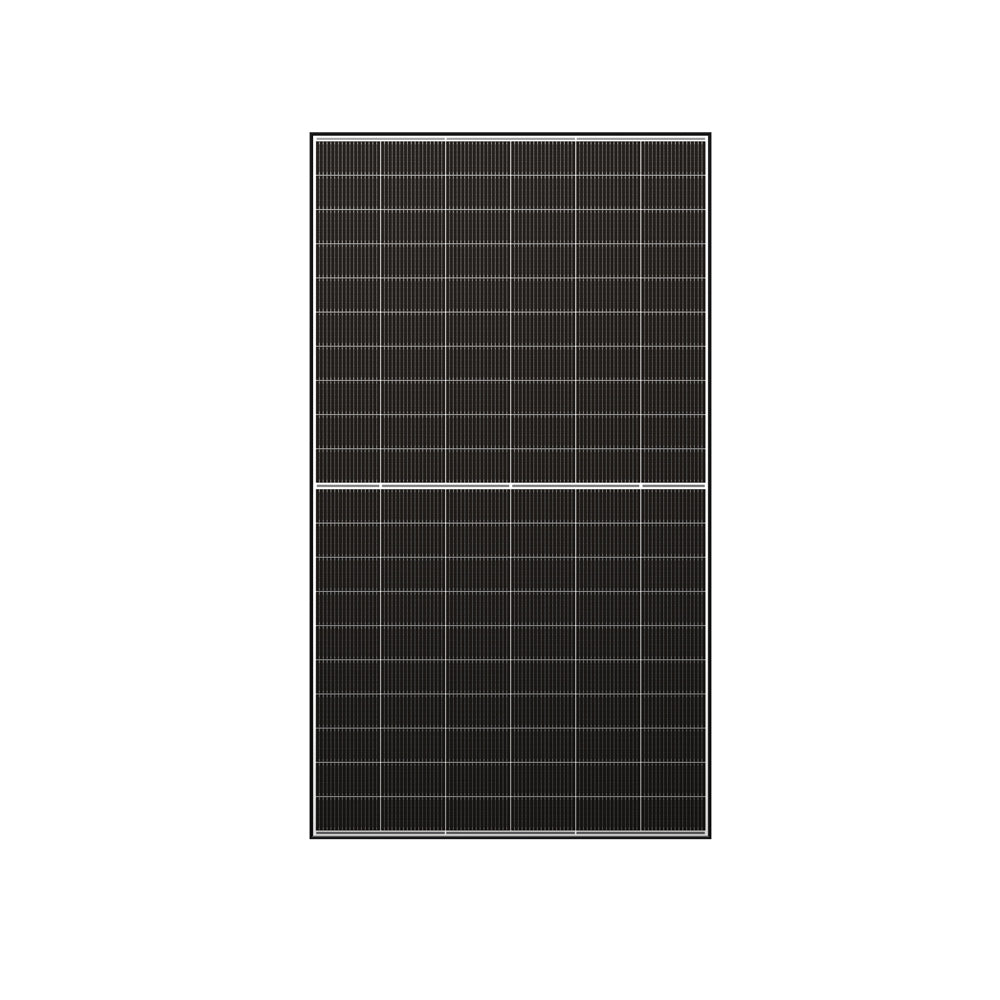

500W bifaciaal zonnepaneel - Voorzijde met glasoppervlak voor lichtabsorptie

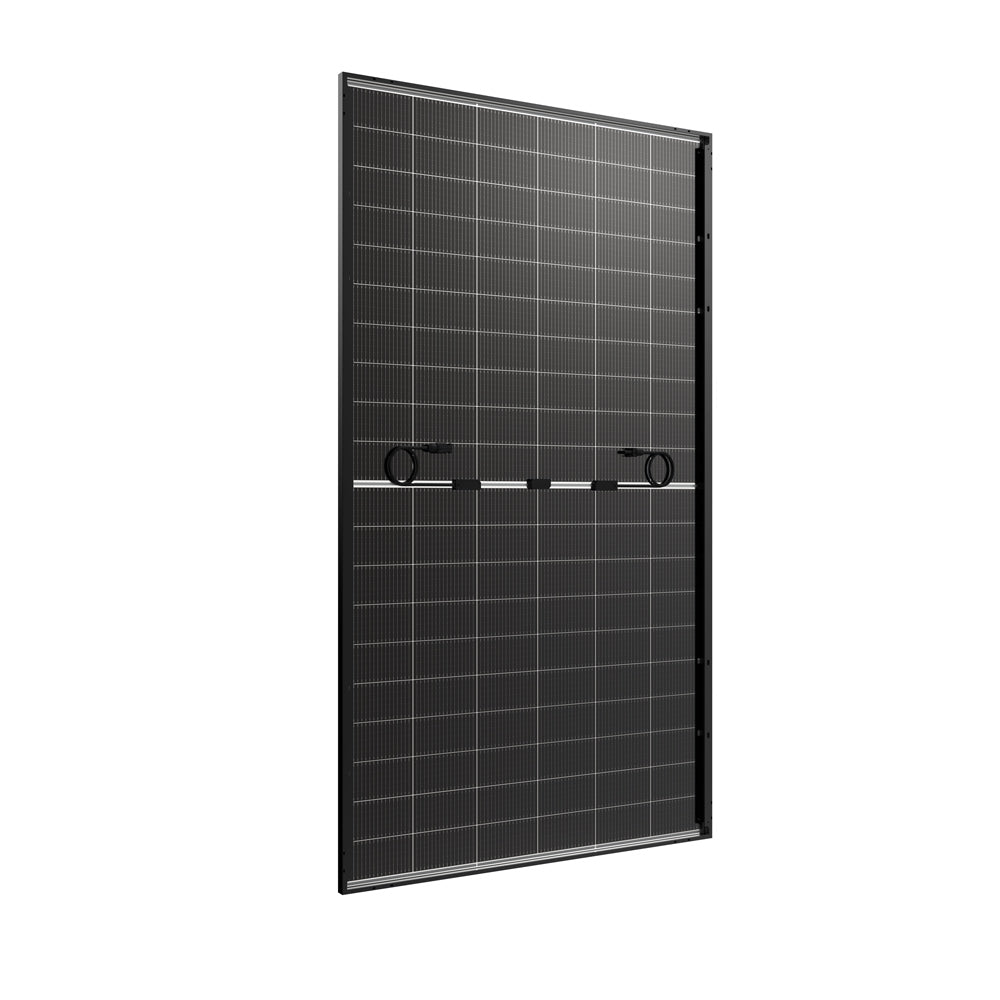

500W bifaciaal zonnepaneel - Achterkant

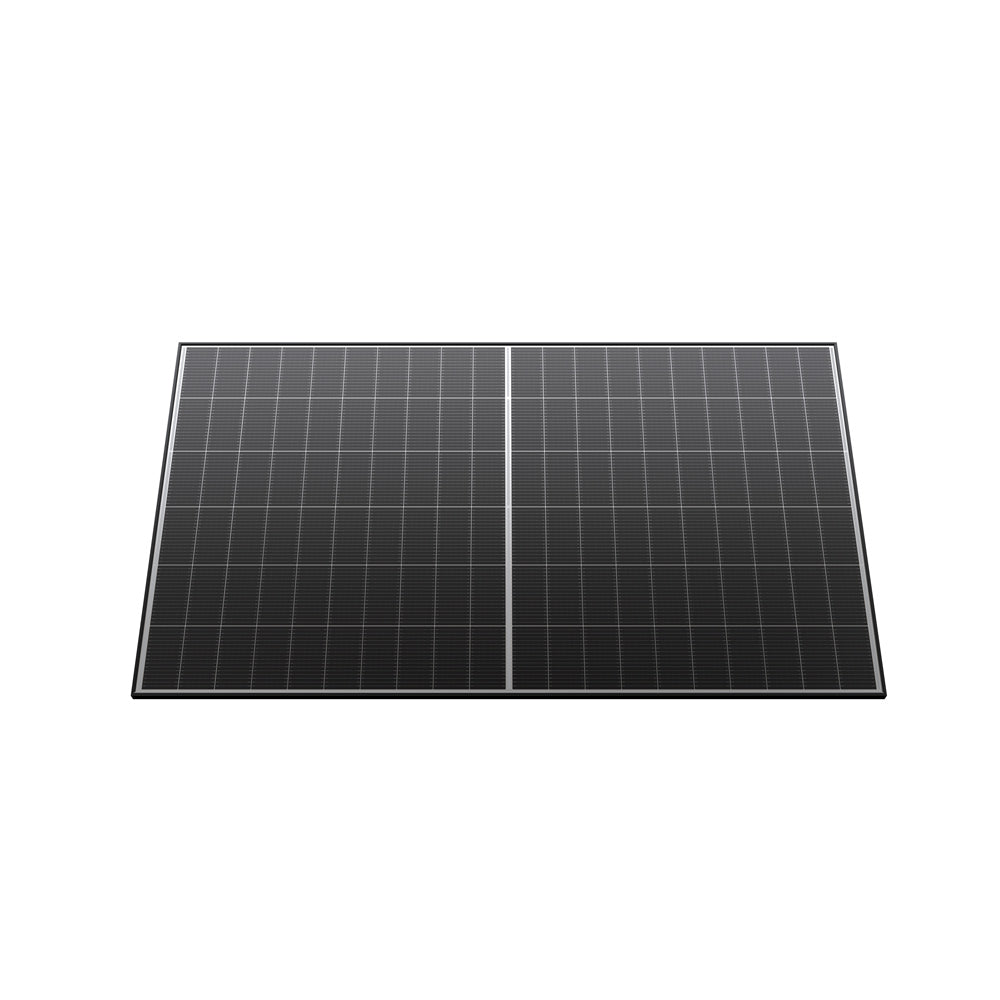

500W bifaciaal zonnepaneel - Op de grond schuin geplaatst
2*500W bifaciaal zonnepaneel - Voorzijde met glasoppervlak voor lichtabsorptie
4*500W bifaciaal zonnepaneel - Voorzijde met glasoppervlak voor lichtabsorptie
500W bifaciaal zonnepaneel - Voorzijde met glasoppervlak voor lichtabsorptie
500W bifaciaal zonnepaneel - Achterkant
500W bifaciaal zonnepaneel - Op de grond schuin geplaatst

500W Bifacial Solar Panels

€422,30 -€-422,30
/
Tax included.
📦Geschatte levertijd: 3-5 dagen
Selection of Solar Panels

2*500W base, 1300W maximum due to additional rear side benefits

Introducing the advanced 500W bifacial solar panel module designed to maximize performance and reliability. With light reversal film technology, this module improves efficiency and bifacial production. Non-destructive cutting ensures gentle and precise cell separation, preserving cell structure for effective current flow. High precision laser soldering for the bonding tray ensures robust construction and increases safety for a reliable solar solution.
* Please note that installation parts are not included. Please purchase them separately as needed.

Key Features

  • Higher conversion efficiency of modules: Module performance up to 22.5% thanks to advanced cell technology and manufacturing methods
  • Lower operating temperature: Lower operating temperature and temperature coefficient increase output responsiveness.
  • Excellent low light performance: More energy production in low light conditions, such as cloudy mornings or evenings.
  • Detailed wind and snow bell load tests: Module certified for weather loading (2400 Pascal) and snow bell loading (5400 Pascal)
  • Connection box IP68: High water and dust resistance

Specifications

Bifacial solar panel module 500W

Model MSMD500M10NR-120BG
Mechanical characteristics
Cell type N-TOPCon Mono
Cell connection 108 (6 x 18)
Module dimensions 1960 x 1134 x 30 mm
Weight 27 kg
Connection box IP68
Output cable +300mm/-200mm
Connector type MC4 compatible
Frame Anodized aluminum alloy
Front load 5400 Pa
Rear loading 2400 Pa
Electrical characteristics (STC*)
Maximum performance (Pmax) 500W
Module efficiency (%) 22.10%
Optimum operating voltage (Vmp) 36.9V
Optimum operating current (Imp) 13.55A
Shielding voltage (Voc) 44.2V
Short circuit voltage (Isc) 14,14A
Module temperature range -40 to +85 ℃
Maximum system voltage value 25A
Performance tolerance 0~+5W
*STC : Radiation 1000 W/m², cell temperature 25°C, AM=1.5.
Pmax tolerance within +/- 3%.
Editing characteristics (NOCT*)
Maximum performance (Pmax) 377W
Optimum operating voltage (Vmp) 34.3V
Optimum operating current (Imp) 10.99 A
Shielding voltage (Voc) 42.1 V
Short circuit voltage (Isc) 11.38 A
*NOCT : Radiation 800 W/m², ambient temperature 20 °C,
AM=1.5, wind speed 1 m/s.
Temperature characteristics
Nominal Modulus Temperature (NOCT) 42±2°C
Temperature coefficient of Pmax -0.29 %/°C
Temperature coefficient of Voc -0.25 %/°C
Temperature coefficient of Isc +0.046 %/°C

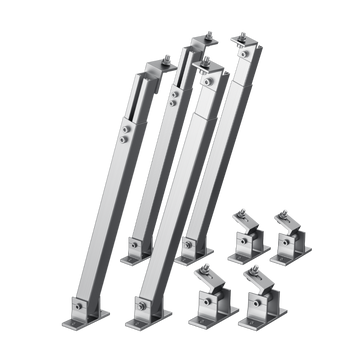

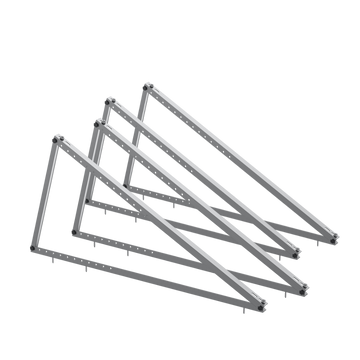

Simple balcony solar panel supports

Appearance
Material AL6005-T5, AL5052, SUS304
Applicable module Landscape
Orientation of the module Ram
Thickness of the module 30 & 35 mm
Application Balcony with metal border arm
Weight 2.5kg
Length of the solar panel (mm) ≤2200mm
Width of the solar panel (mm) 751≤A≤1313mm
Thickness of the solar panel (mm) 30-35 mm
Corner 0&15-30 Degrees
Maximum wind speed 40m/s
